Humanoid Robot Project – SURALP

Sabancı Üniversitesi Robot Araştırmaları Laboratuvar Platformu

Sabancı University Robotics Research Laboratory Platform

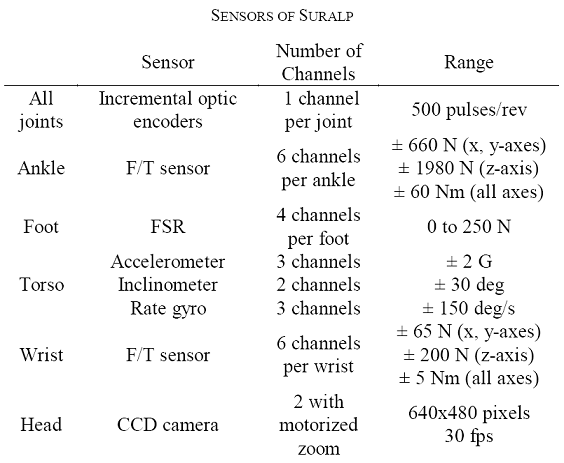

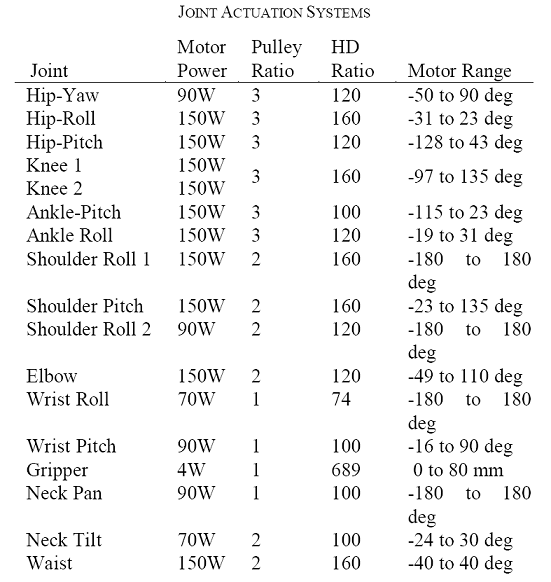

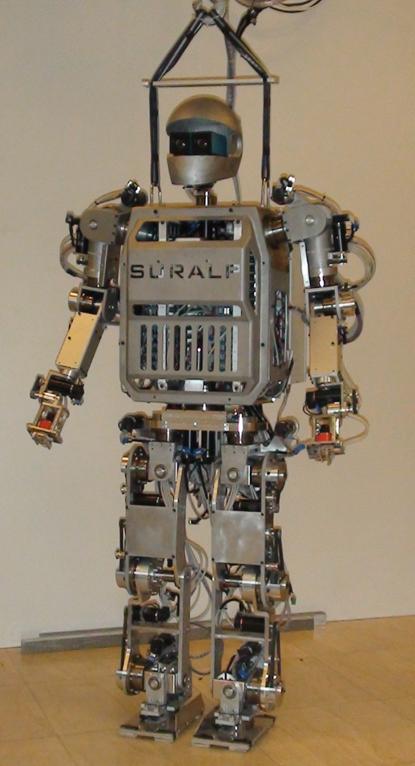

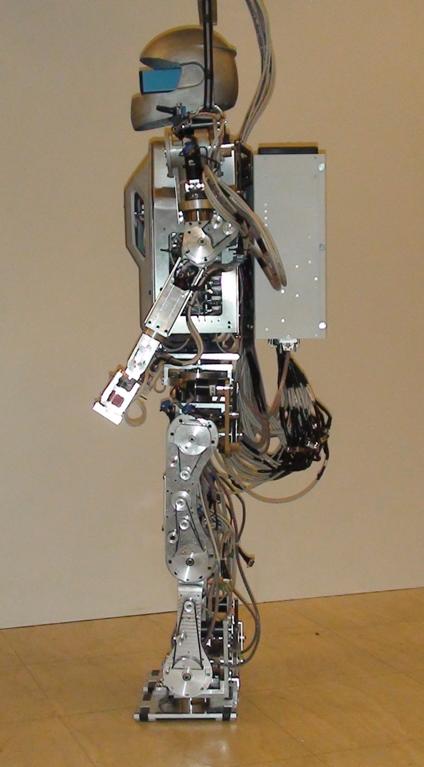

SURALP is a walking humanoid robot platform designed at Sabanci University - Turkey. The kinematic arrangement of the robot consists of 29 independently driven axes, including legs, arms, waist and a neck. This paper presents the highlights of the design of this robot and experimental walking results. Mechanical design, actuation mechanisms, sensors, the control hardware and algorithms are introduced. The actuation is based on DC motors, belt and pulley systems and Harmonic Drive reduction gears. The sensory equipment consists of joint encoders, force/torque sensors, inertial measurement systems and cameras. The control hardware is based on a dSpace digital signal processor. A smooth walking trajectory is generated. A variety of controllers for landing impact reduction, body inclination and Zero Moment Point (ZMP) regulation, early landing trajectory modification, and foot–ground orientation compliance and independent joint position controllers are employed. A posture zeroing procedure is followed after manual zeroing of the robot joints. The experimental results indicate that the control algorithms developed  are successful in achieving a stable walk on flat and inclined surfaces. Force and visual control techniques are implemented for object manipulation other environmental interaction tasks too.


Sabancı University members who contributed to the design, production and control system creation of SURALP from 2002 to 2010:


Associate Professor Kemalettin Erbatur: Humanoid Robot Research Team Leader


Dr. Özkan Bebek: Graduate Student, 2002-2003
Dr. Yasser Elkahlout: Graduate Student, 2002-2003
Ozan Ayhan: Graduate Student, 2003-2004
Okan Kurt: Graduate Student, 2004-2006
Utku Seven: Graduate Student, 2005-2007, Doctoral Student, 2007-…
Evrim Taşkıran: Graduate Student, 2007-2009
Özer Koca: Graduate Student, 2007-2009
Metin Yılmaz: Graduate Student, 2008-2010
Kaan Can Fidan: Graduate Student, 2010-…
Tunç Akbaş: Graduate Student, 2010-…


As part of the TÜBİTAK project 106E040 from 2006 to 2009, Sabancı University Faculty of Engineering and Natural Sciences Mechatronic Engineering Program faculty members Professor Asif Şabanoviç, Associate Professor Mustafa Ünel, Assistant Professor Güllü Kızıltaş and Assistant Professor Ahmet Onat assisted the project.

Sabancı University technicians Mehmet Güler, Süleyman Tutkun, İlker Sevgen and Umut Demir worked on the production of many robot parts.

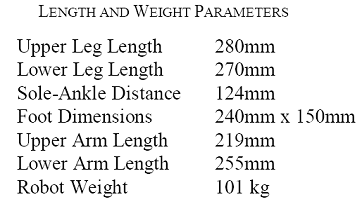

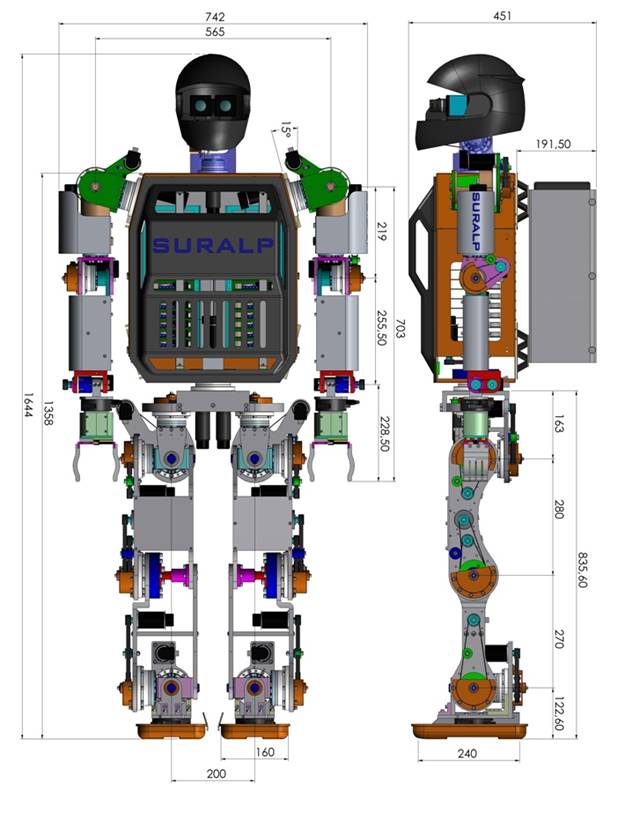

Dimensions:

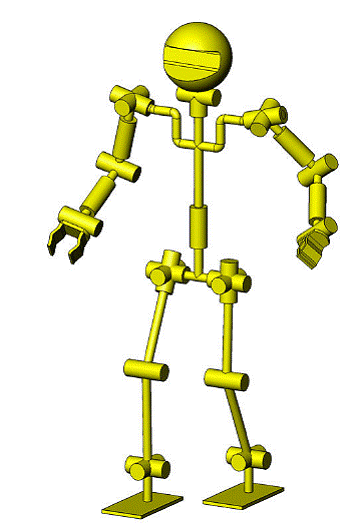

Kinematic arrangement:
























Timeline:

January 2008

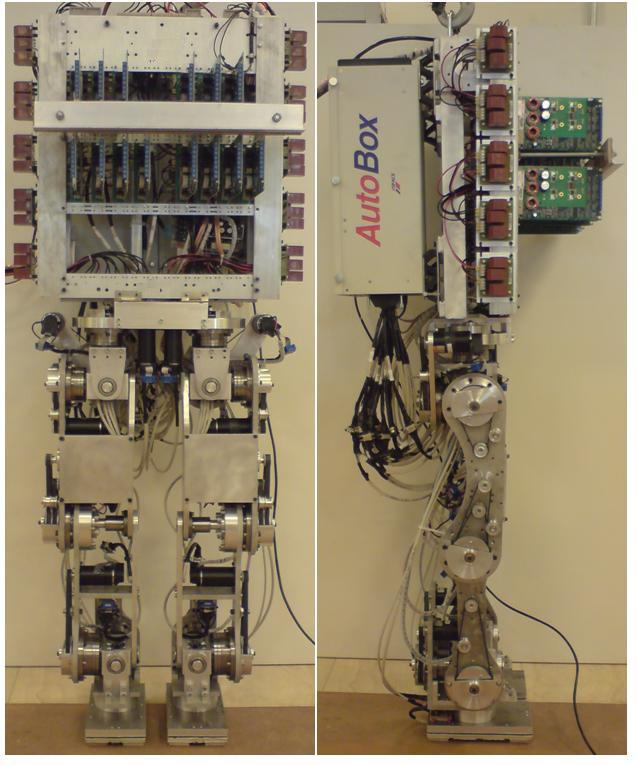

The leg module of the robot and the trunk is assembled.

suralp

May  2008
The leg module walks.

June 2008
The platform is named SURALP for Sabancı University Robotics Research Laboratory Platform.
The leg module is named SURALP-L.

July 2008 Video

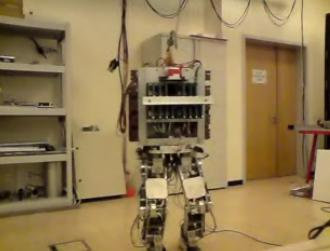

suralp-L picture 2





January 2009 Pictures



August 2009 videos

SURALP walks with Zero Moment Point based reference trajectories.  (Video by Bora Bekiroğlu)



Walk on uneven surfaces with Zero Moment Point based reference trajectories. (Video by Bora Bekiroğlu)



SURALP pushes the wall and re-establishes balance. (Video by Bora Bekiroğlu)



Object manipulation, force and vision feedback



Arm, waist and neck motion

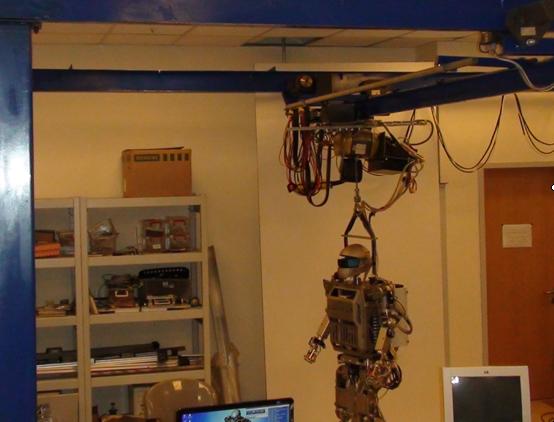

SURALP introduced to the public - October 2010
