ULTRA WIDE BAND WALL PENETRATING RADAR AT SABANCI UNIVERSITY
(DUVARIN ARKASINI GOREN SISTEM)

Faculty:   Meric Ozcan, Ibrahim Tekin
Students:Erman Engin, Berkehan Ciftcioglu

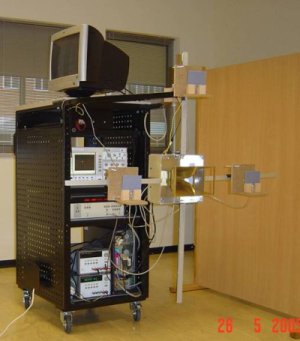

picture of the radar



Our radar prototype...It works in the  3-6 GHz
range and the receiving antennas are developed
at Sabanci University.

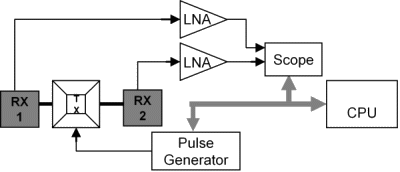

Block diagram the radar is shown below.
Operation of the radar and the signal processing
is orchestrated by the computer.

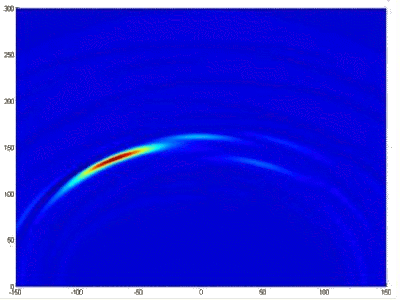

A human target behind the wooden
wall...Bright spot at 11 o'clock is the target
(approximately 1.2 m away from the wall).













    20cm x 30 cm metal plate is located
    behind a 23 cm thick brick wall...










Here we see the breathing pattern of a human detected behind a 23 cm thick brick wall.
